Original RT809H Programmer ISP to JTAG Frequency Conversion Air-conditioning Software Read and Write adapter MCU TMS320F28035

£14.82

Package: SMD is_customized: Yes Model Number: ISP RT809H Dissipation Power: standard Supply Voltage: standard Application: Computer Type: Logic ICs Brand Name: XRIICHA Origin: Mainland China Condition: New Operating Temperature: standard ORIGINAL: Yes Programmer use: RT809H programmer This small board is suitable for RT809H programmer, used to fly line to the inverter air conditioner board to be repaired to read and write CPU data. It does not use […]

949 in stock

Estimated shipping to United Kingdom (UK):

SKU: 1005004187552926

Tags: adapter

Package: SMD
is_customized: Yes
Model Number: ISP RT809H
Dissipation Power: standard
Supply Voltage: standard
Application: Computer
Type: Logic ICs
Brand Name: XRIICHA
Origin: Mainland China
Condition: New
Operating Temperature: standard
ORIGINAL: Yes
Programmer use: RT809H programmer

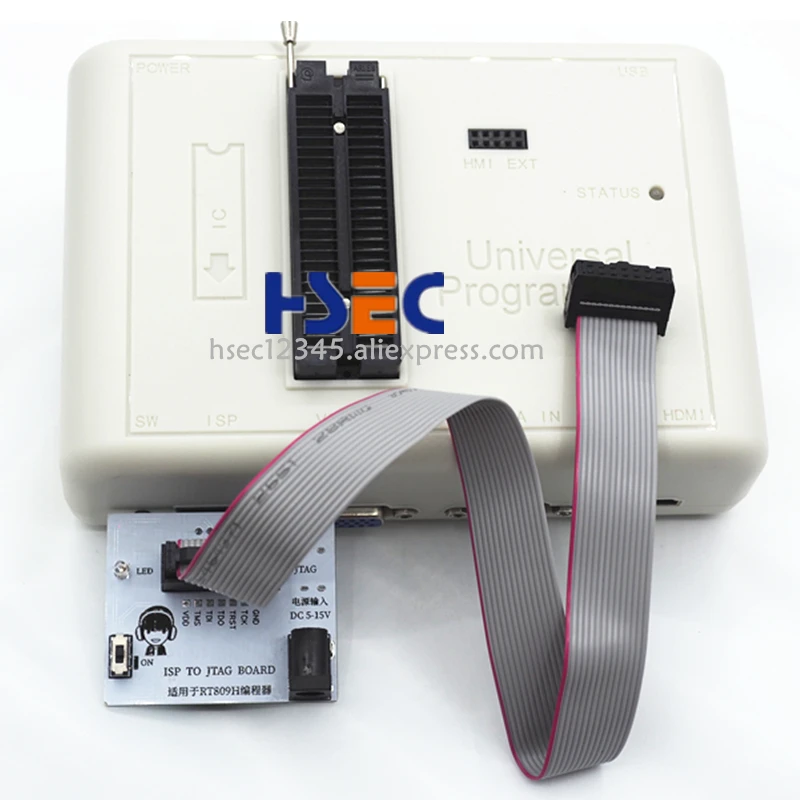

This small board is suitable for RT809H programmer, used to fly line to the inverter air conditioner board to be repaired to read and write CPU data. It does not use the power supply output by the programmer, but uses an external power supply to calmly deal with the large current of the board and supports the use of mobile phone charging The line is inserted into the small board interface, convenient and quick.

Instructions:

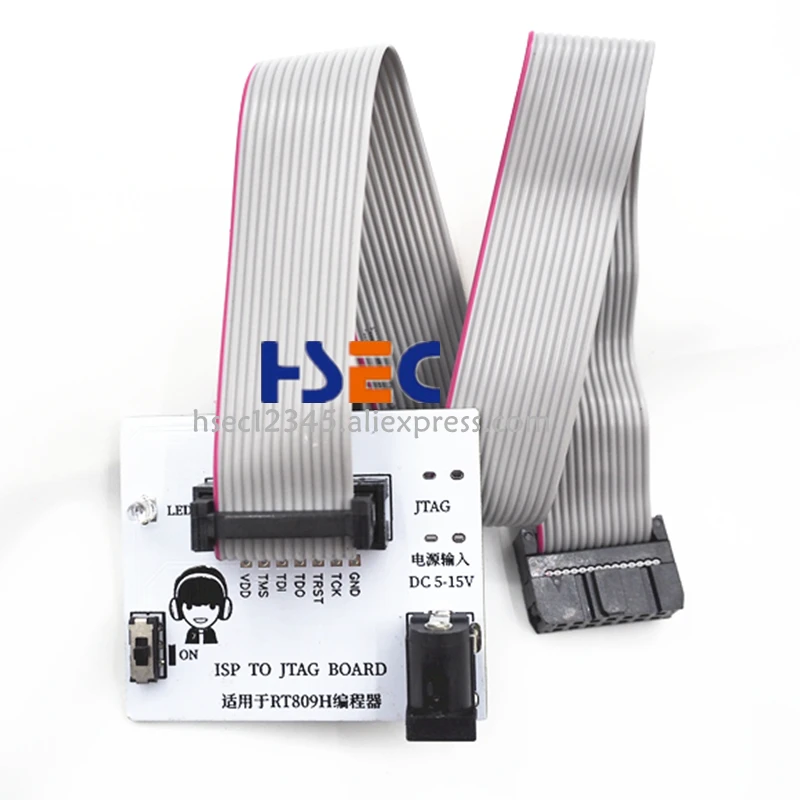

1. Connect the 14P JTAG line to the target board;

2.Dial the switch to the “ON” end, if it is a pin, insert the adjusting cap to the two pins of the “ON” side;

3.Insert the mobile phone charging cable into the port of the small board, and plug the charger into the power socket and power on;

4.If you see the light on the target board, it means that the connection is basically correct and you can start reading and writing operations.

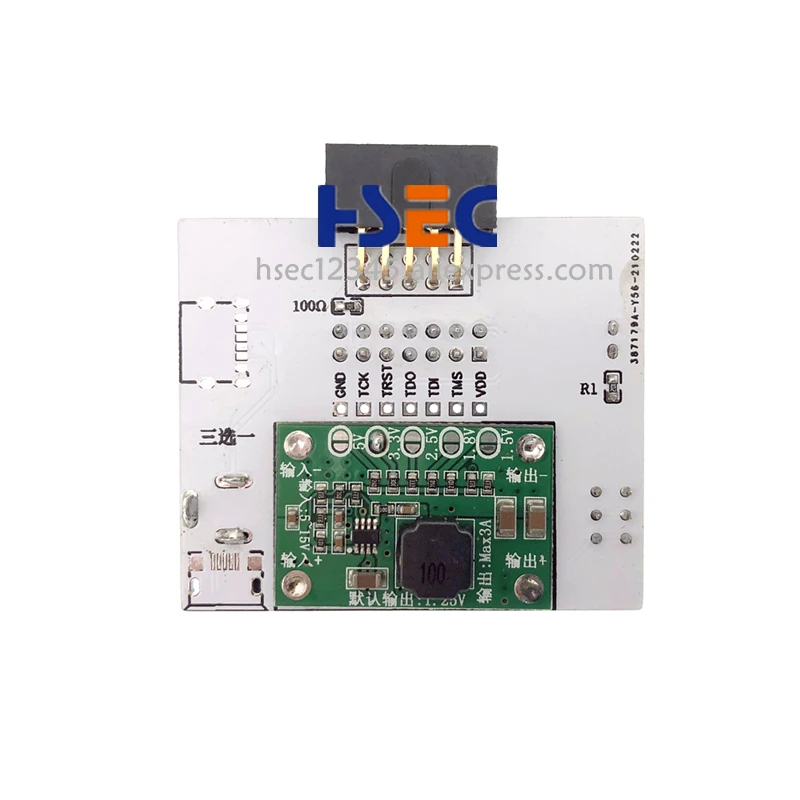

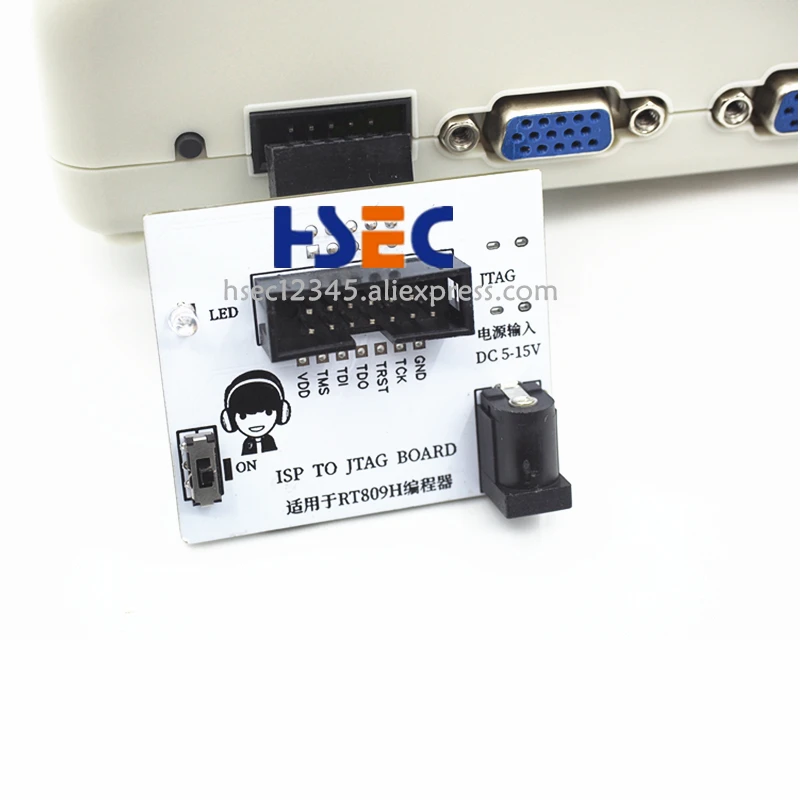

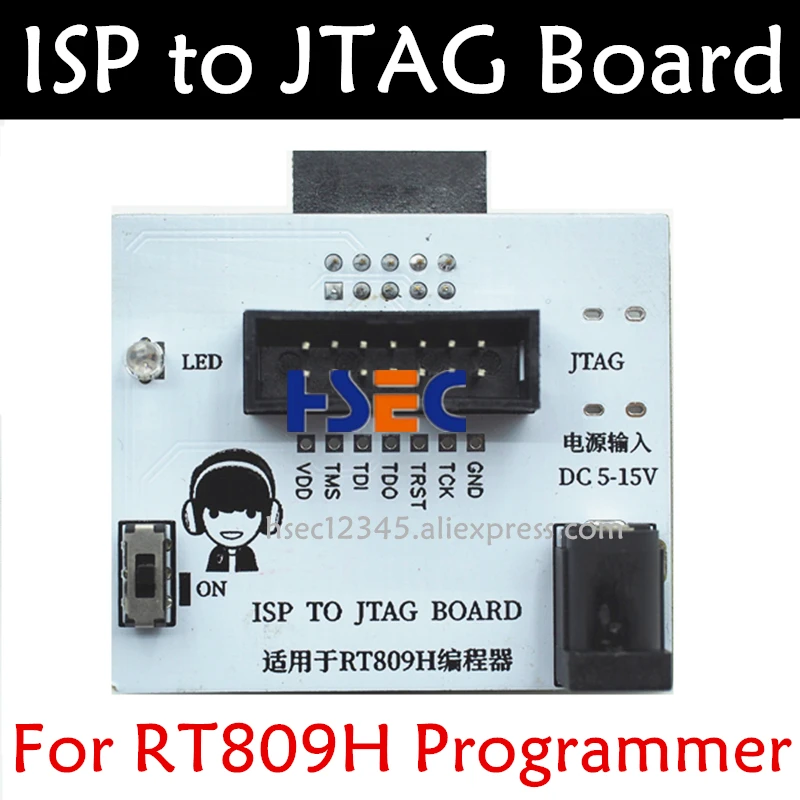

1. ISP to JTAG Board

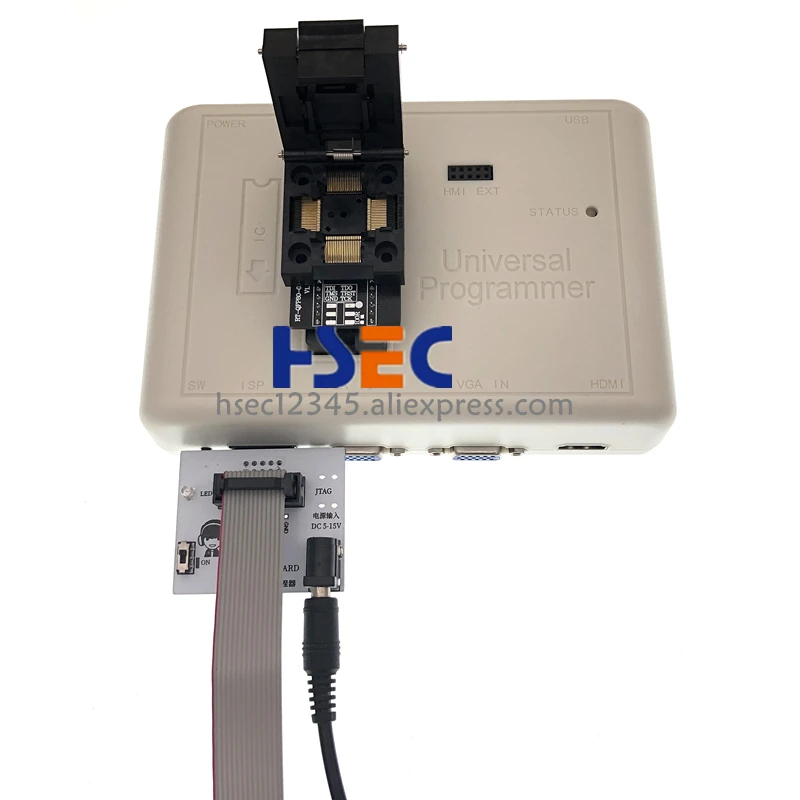

This small board is used with QFP80 adapter, if you need adapter please check as this link or click picture below:

https://www.aliexpress.com/item/1005003108055819.html?pdp_ext_f=%7B%22sku_id%22:%2212000024130751899%22,%22ship_from%22:%22%22%7D&gps-id=pcStoreNewArrivals&scm=1007.23409.123629.0&scm_id=1007.23409.123629.0&scm-url=1007.23409.123629.0&pvid=1e44f2ae-e9fd-4863-bc84-6e8b1c264b77&spm=a2g0o.store_pc_home.smartNewArrivals_269990044.1005003108055819

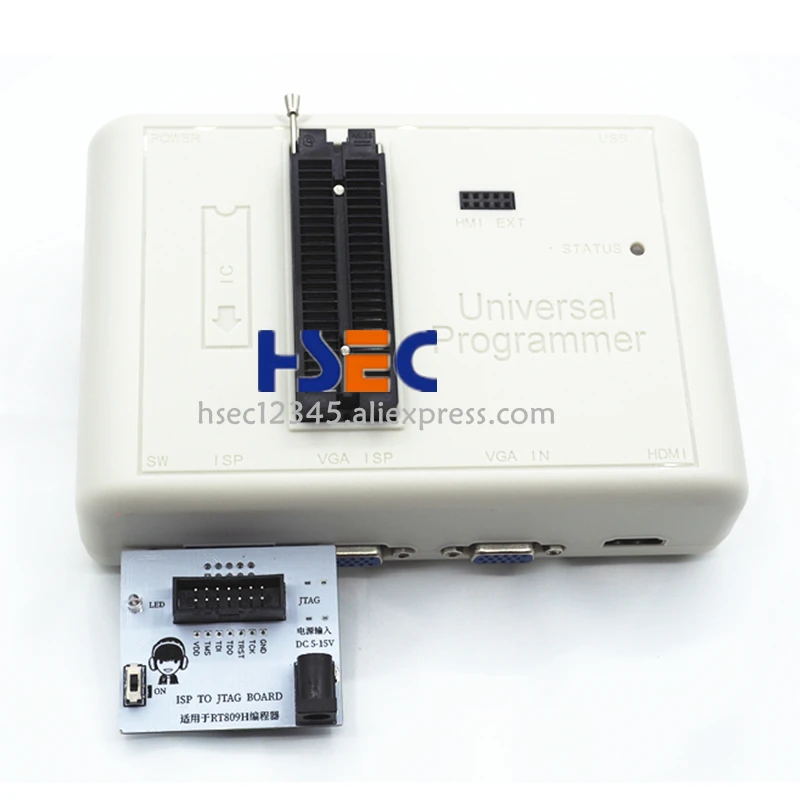

Ues with RT809H programmer only, if you need programmer please click the link or pirture

https://www.aliexpress.com/item/32757060148.html?spm=5261.ProductManageOnline.0.0.961c4edf3q5yBy
