- Frequency: 5 GHz
- Heat dissipation: Support
- Wireless Communication Standard: 802.11.ax
- Frequency Band Class: Dual-Band
- Bluetooth Protocol: Bluetooth 5.4
- Wired socket: None
- Wireless socket: None
- Wired transmission rate: None
- Wired Interfaces: None
- Model Name: WDP-AX900
- Wireless transmission rate: 900M
- High-concerned chemical: None
- Wi-Fi Supported Frequency: 2.4G & 5G
- Lan Transmission Rate: 1000M Ethernet
- Transmission Speed: 600 Mbps
- Applicable Network Type: Gigabit Ethernet
- Wireless Protocol: 802.11n,802.11ax(802.11ax),802.11a/g,802.11ac
- Certification: CE,FCC,RoHS
- Package: Yes
- Application: Laptop
- Interface Type: NGFF
- Adapter Socket: M.2
- Kind: Internal
- Transmission Rate: 10/100Mbps
- Type: WireLess
- Brand Name: TelDaykemei
- Origin: Mainland China
- Bluetooth: Bluetooth 5.4
- Wireless Rate: 2.4GHz:287Mbps;5.8GHz:600Mbps
- Other Functions: Simulate AP, MU-MIMO
- Support OS: Windows 10/11
- Chip: AIC8800M80
- Encryption: WPA3 encryption is more secure, also support WPA-WEP/WPA-PSK/WPA2-PSK
Note: If you do not recognize any wifi, it is recommended that you disable the device first and then enable it.
You can contact us or download in this link: www.lulian.cn/download/135.html

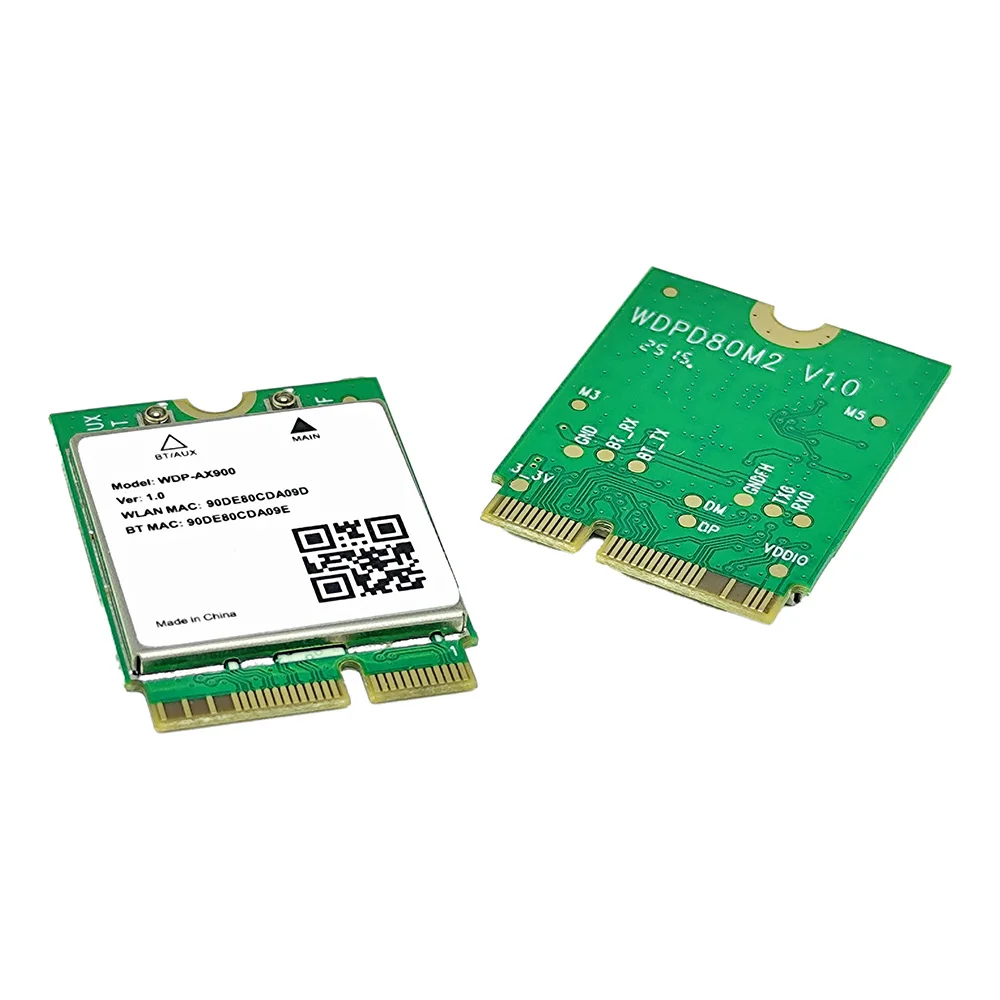

Product Introduction:
The card is suitable for wireless connection of desktop PC, and can provide a convenient and fast wireless internet access. The network card supports automatic detection function and can automatically adjust the speed
Comply with IEEE 802.11a/ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1ax standards
Wireless transmission rate: up to 286Mbps in the 2.4G frequency band; The 5G frequency band can reach up to 600Mbps
Support advanced security mechanisms for WPA, WPA2, and WPA3, providing security guarantees for wireless network connections
Product selling points:
1) 900Mbps high-speed transmission rate
2) 2.4G&5.8G dual frequency concurrent
3) Need to intsll the driver
4) Supports WiFi6 standard IEEE802.11ax protocol
5) Compatible with mainstream operating systems in the market
6) Support WPA3 encryption format for safer internet access

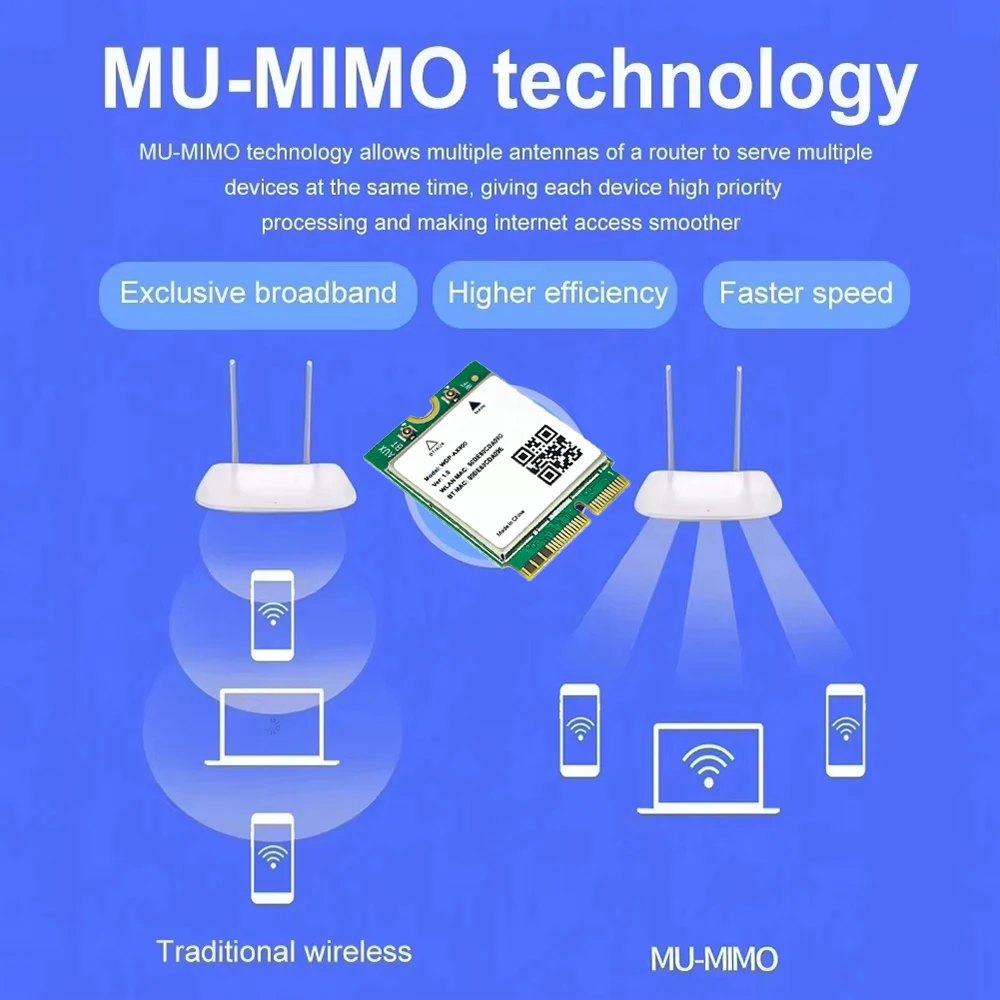

7) Support MU-MIMO multi device connection to improve network efficiency
8) Supports WiFi reception and AP hotspot transmission
9) Only Support Windows 10/11
Product Bluetooth selling points:
1) Bluetooth 5.4 version
2) Supports low latency, dual modes of BLE/EDR
3) Supports simultaneous connection of 7 devices
4) Automatically reconnects upon initial connection, no need for secondary pairing 5) Connect to the Bluetooth speaker headphones and enjoy high-quality stereo lossless sound.
